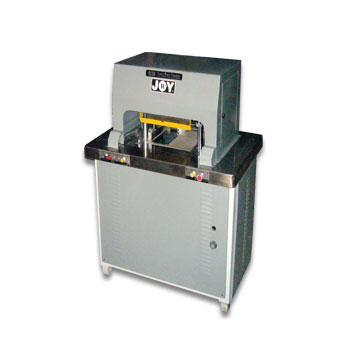

Booklet Three Side Trimmer
View the video of this product:
JOY's commitment to the Binding (Post-Press) industry, for providing off-line
economical dedicated solutions for preparing and finishing Book-blocks for
soft/hard cover requirement; is further extended by adding Booklet Three Side
Trimmer to the range.
Semi-automatic Three Knife Trimmer with manual feeding of
Booklets to meet the demand of higher production with maximum
operator efficiency and safety.
Ideally suited for finishing of Booklets (Centre Stitched / Sewn),
Exercise Note Books and Book-Blocks etc.
Hydraulic Clamping and Cutting mechanism is very simple to
operate and maintain.
Size changeover is very quick and easy with the help of Clamp
Boards.
The castors are provided for convenient manoeuvre for maximum
utilisation of space.
Mechanical Safety Device in addition to Sensor Curtain for optimum operator safety.
| Technical Specifications | ||
Description |
Unit |
BTST |
| Booklet Size (maximum) | mm |
300 X 300 |
| Booklet Size (minimum | mm |
90 X 105 |
| Maximum Pile Height | kgs |
60 |
| Cycles Per Minute | 10 |
|
| Electrical Load | kw/HP |
1.5 / 2 |
| Electrical Supply | 380/415 V AC50hz 3ph |
|
| Overall Dimension (WxDxH) | cms |
101 X 76 X 168 |
| Weight (approximate) | kgs |
450 |
