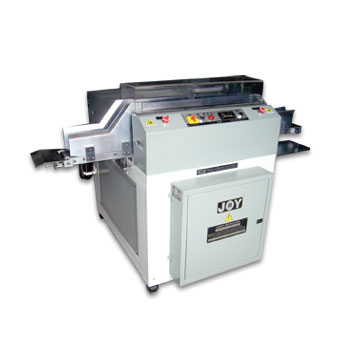

Nipping and Smashing Press (Online)
View the video of this product:
NIPPING-the process of reducing / knocking out the Swell in the spine of: Thread-sewn
Book-Block or gathered/collated folded-forms (signatures) being pressed for Hard-case
or Soft Cover / Perfect Binding. SMASHING-the process of removing the air from the
folds and flattening the overall area of the Book-Blocks. BOOK-BLOCK should be
rectangular in shape and free from extreme gradients in the folded sewn area for quality
and enhanced life of-the BOOK.
Nipping Press and Smashing & Nipping Press, these offline
semi-automatic machines for producing rectangular &
compact Book-Blocks have become an important part of
the Binding industry. To meet the need for faster system with
maximum safety and operator efficiency, the ONLINE
System was launched.
The unit consists of two independent pressing stations for
Nipping and Smashing respectively to process sectionsewn
book blocks. The machine can be used as an offline or
in conjunction with another Book-block preparing system.
Book-block is dropped manually at the feeding station on
the conveyor. A simple mechanism ensures the same
travels the correct distance to position itself in the centre of
the Nipping and Smashing stations respectively. Conveyor
enables the Book-block to be delivered to the Chute whilst
Nipping & Smashing of the subsequent blocks are being
processed at 15/20 cycles per minute.
PLC based control panel ensures optimum reliability and simple diagnostics with sensors ensuring no damage is caused to any Book-Block. Centerlised Lubrication System incorporated to ensure maximum life of the phosphor bronze bush/s and smooth functioning. Power saving feature ensures the motor switches off automatically after pre-set delay time. Ambient temperature in the Power- Pack area is maintained for consistent productivity and extended life of rubber parts.
Technical Specifications | |||
Description |
Unit |
NSP31 |
NSP41 |
Book Block Width (Min/Max) |
mm |
100 / 310 |
100 / 410 |
Book Spine Thickness (Min-Max) | mm |
10 / 110 |
10 / 110 |
Book Height (Min/Max) | kgs |
70 / 250 |
70 / 250 |
System Clamp Pressure (Adjustable) | kgs |
10000 |
12000 |
Electrical Load | kw/HP |
3.75 / 5HP + .25HP |
|
Electrical Supply | 380 / 415V AC 50Hz 3Ph |
||
Production Speed (30mm Spine Thickness) | cpm |
15-20 |
15-20 |
Overall Dimension (WxDxH) | cms |
128x182x120 |
148x182x120 |
Hydraulic Oil Capacity | ltrs |
140 |
160 |
Net Weight (Approx.) | kgs |
1500 |
1900 |
