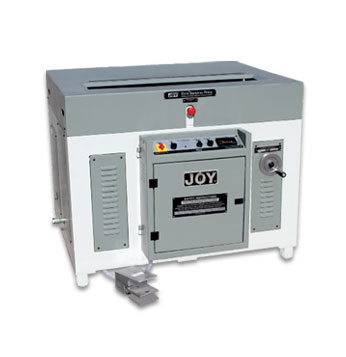

Edge Squaring Press

View the video of this product:

Ever since the process of Spine (Edge) Squaring the Centre Stitched / Sewn books was introduced and accepted by the Converters / Stationery Manufacturers, there has been no looking back. ‘JOY’ launched its first machine in size 310mm (In the year 1999) followed by 410mm thereafter 520(2002), 610mm & 650mm(2003), 1020mm(2005), 800mm(2007), 920mm(2008), 460mm, 710mm & 850mm (2012).

A constant dialogue with our customers, to satisfy the need of production requirement has resulted in the Squaring Press to handle 3 or 4-UP Exercise Note Books upto a width of 1020mm. 3or 4 sets of Exercise Note Books (Composition Books/centre thread-sewn or centre wire-stitched) with heavy duplex board as title can be processed in less than 3/4secs. Productivity of over 9000 (1000x3x3) or 12000 (1000x4x3) Exercise Note Books per hour can be achieved with little or no training.

The system can be operated in Manual, Semi or Auto modes. The squaring mechanism can also operate in single or double stroke/s. The squaring finish can be precisely set to meet exacting aredqjuusirteedm teon stus.it tThhee p acplaemr/ bpoinagrd a anndd tshqicukanreinsgs opf r tehses Nuroet ec Baono kbse

Safety precaution - Emergency Switch aborts the Operating Cycle and opens the Moving Platen to reset position in case of an accident. Intricate built-in Safety Device protects the fingers of the operator. Power Saving feature ensures the motor switches off automatically after Pre-set delay time (incase the recycle function is not activated).

The high speed Blower / Exhaust Fan ensures the ambient temperature in the Power Pack Area is maintained for consistent production and longer life of Rubber hoses / seals & hydraulic components etc. PLC based control panel for sequencing, optimum reliability and simplified diagnostics. Castors are provided for maximum mobility for space saving.

Technical Specifications
Description
Unit
ESP 52
ESP 71
ESP 85
ESP102
Book Block Size
mm
520
710
850
1024
Book Spine (Min-Max)
mm
5 - 70
5 - 70
5 - 70
5 - 70
Book Height (Min-Max)
mm
85
100
100
100
System Clamp Pressure (Adjustable)
kgs
6000
9000
10000
10000
Joint Bar Pressure (Adjustable)
kgs
2500
3000
3600
3600
Electrical Load / Motor
kw / HP
2.25/3
2.25/3
2.25 / 3
2.25 / 3
Electrical Supply
380 / 415V AC 50 Hz 3Ph
Overall Dimension (WxDxH)
ltrs
35
35
35
35
Hydraulic Oil Capacity
cms
101x114x101
120x109x99
125x109x99
140x110x99
Net Weight (Approx.)
kgs
740
900
1100
1220
